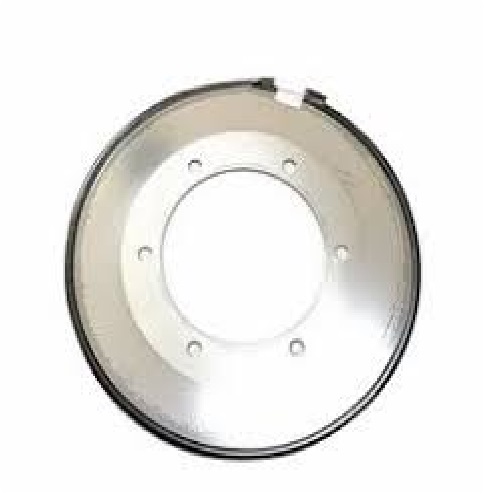

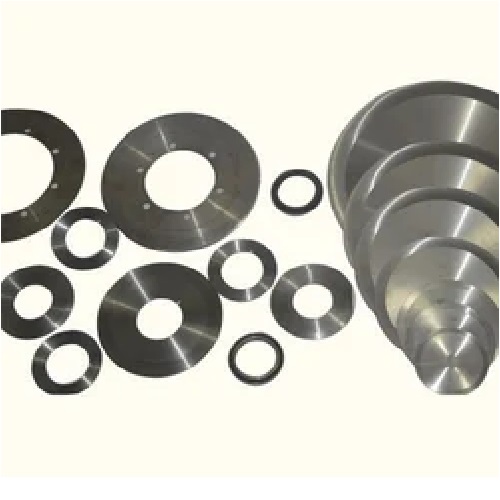

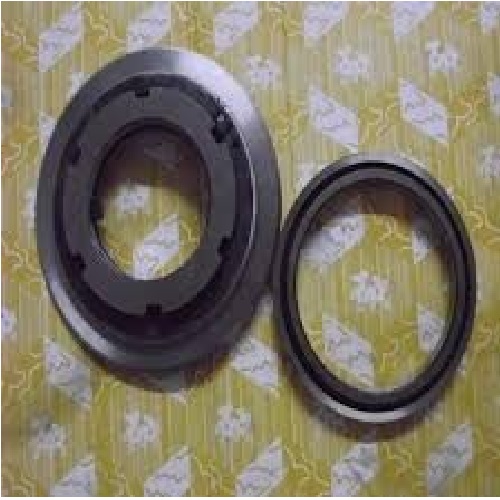

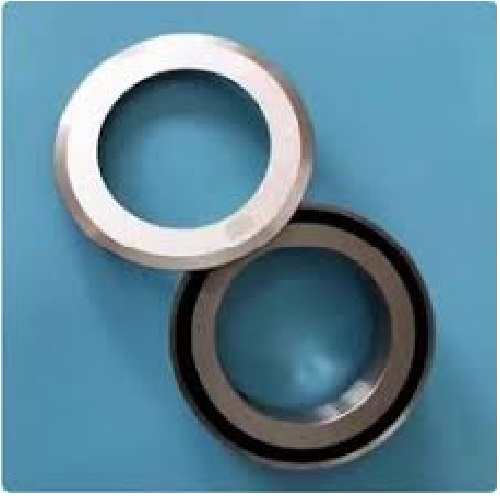

Cutter Holder Bottom

Cutter Holder Bottom

Definition:
The Cutter Holder Bottom is a crucial component of a cutting or milling assembly that supports, aligns, and secures the cutting tool in machines such as extruders, granulators, shearing machines, or CNC machines. It serves as the foundation for the cutter or blade, ensuring precision, stability, and efficient cutting performance.

Material:

• Typically manufactured from high-carbon steel, alloy steel, or stainless steel for strength and durability.
• Hardened and tempered to withstand high pressure, friction, and repeated cutting operations.
• Some models have surface coatings or treatments (e.g., chrome plating) to reduce wear and resist corrosion.

Design & Features:

• Shape & Structure: Flat or contoured base with slots, grooves, or mounting holes for secure attachment of the cutter blade.
• Precision Alignment: Ensures the cutting tool is held at the correct angle and height for accurate cuts.
• Compatibility: Designed to fit specific machines and blade types; often comes in standardized sizes or custom dimensions.
• Durability: High hardness (usually HRC 4560) to resist deformation under mechanical stress.
• Stability: Provides firm support to prevent blade vibration, chattering, or misalignment during operation.

Applications:

• Securing blades in extruder cutter assemblies for plastic, rubber, or food processing.
• Holding shearing blades in sheet metal cutting machines.
• Supporting granulator or shredder blades in industrial recycling equipment.
• Essential in precision cutting, milling, and grinding operations in various industries.

Maintenance & Lifespan:

• Inspection: Regularly check for wear, cracks, or misalignment to ensure stable cutting performance.
• Cleaning: Remove debris and material buildup to maintain smooth operation.
• Replacement: Lifespan depends on machine usage, cutting pressure, and material hardness.

Benefits:

• Ensures accurate and stable blade positioning for precision cutting.
• Reduces vibration and blade wear, improving efficiency and lifespan.
• Compatible with a variety of cutter blades across multiple industrial applications.
• Durable and reliable for continuous industrial operation.
